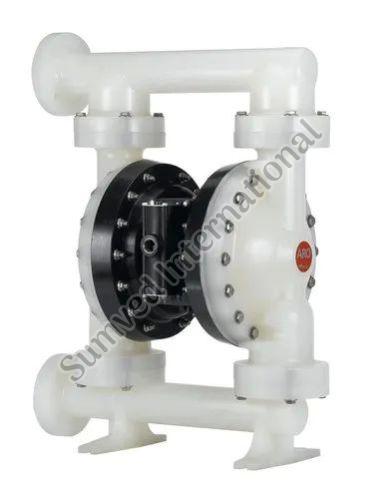

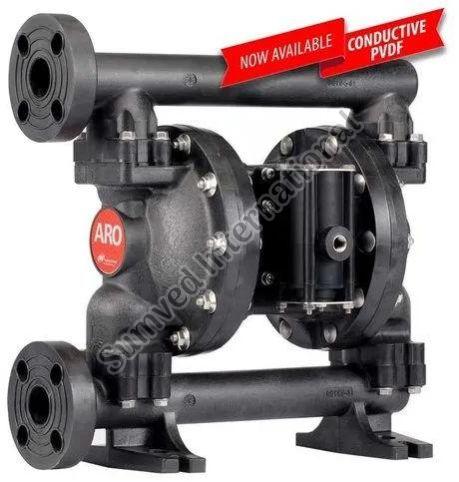

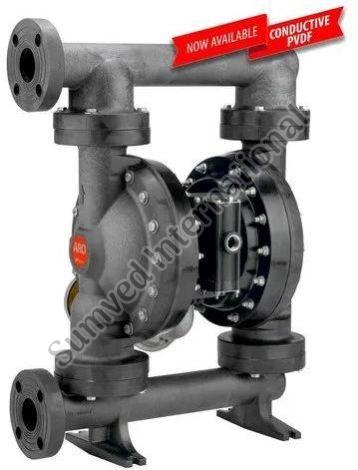

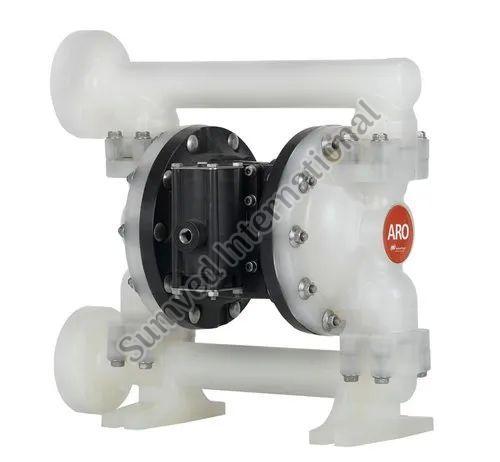

Non-Metallic Air Operated Diaphragm Pump
Leading Exporters, Wholesaler, Retailer, Trader and Distributor of 1 Inch Expert Series Non-metallic Air Operated Diaphragm Pump and 2 Inch Expert Series Non-Metallic Air Operated Diaphragm Pump from Navi Mumbai.
1.25 Lac - 1.25 Lac / Piece
Get Best Price
| Business Type | Supplier, Trader, Distributor |
| Power Source | Air Power |
| Model Name/Number | 1 |
| Pump Type | Diaphragm Type Air operated |
| Material | PVDF/POLYPROPYLENE |
| Max Flow Rate | 200 Lpm |
| Head | 5.7 mtr |
| Output | 53 gpm |
| Max Pressure | 8.3 Bar |
Benefits
- Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
- Reliability - Our patented Unbalanced air valve ensures no-stall operation
- Versatility - Broad range in materials of construction for optimum fluid compatibility
- Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
Serviceability - Easier service through modular design
- Pump Casing Materials
- Polypropylene
- Conductive Polypropylene
- PVDF (Kynar)
- Conductive PVDF
Diaphragm Materials
- Long Life PTFE (not available with C-PVDF)
- Santoprene
- Hytrel
- Nitrile
- Medical Grade Santoprene
- PTFE w/ Santoprene backer
- Viton
Weight lbs (kg):
- Polypropylene, Threaded Port 19.35 (8.78)
- Polypropylene, Center Ported 19.59 (8.89)
- Polypropylene, Side Ported 19.87 (9.01)
- PVDF, Threaded Port 25.83 (11.72)
- PVDF, Center Ported 26.72 (12.12)
- PVDF, Side Ported 27.15 (12.32)
- Maximum dry suction lift ft(m): 19 (5.7)
- Sound Level: 70 PSI60 Cycles/Min79.7 db(A)
| Business Type | Supplier, Trader, Distributor |
| Power Source | Air Powered |
| Model Name/Number | 2" EXPERT SERIES |
| Pump Type | Diaphragm Pump |
| Material | PVDF/POLYPROPLYNE |
| Max Flow Rate | 696 lpm |
| Head | 4.2 mtr |
Benefits
- Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
- Reliability - Our patented Unbalanced air valve ensures no-stall operation
- Versatility - Broad range in materials of construction for optimum fluid compatibility
- Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
Serviceability - Easier service through modular design
- Pump Casing Materials
- Polypropylene
- Conductive Polypropylene
- PVDF (Kynar)
- Conductive PVDF
Diaphragm Materials
- Long Life PTFE (not available with C-PVDF)
- Santoprene
- Hytrel
- Nitrile
- Medical Grade Santoprene
- PTFE w/ Santoprene backer
- Viton
Weight lbs (kg):
- Polypropylene, Threaded Port 19.35 (8.78)
- Polypropylene, Center Ported 19.59 (8.89)
- Polypropylene, Side Ported 19.87 (9.01)
- PVDF, Threaded Port 25.83 (11.72)
- PVDF, Center Ported 26.72 (12.12)
- PVDF, Side Ported 27.15 (12.32)
- Maximum dry suction lift ft(m): 19 (5.7)
- Sound Level: 70 PSI60 Cycles/Min79.7 db(A)
