1.35 Lac - 2.30 Lac / Piece
| Business Type | Supplier, Trader, Distributor |
| Power Source | Air Powered |

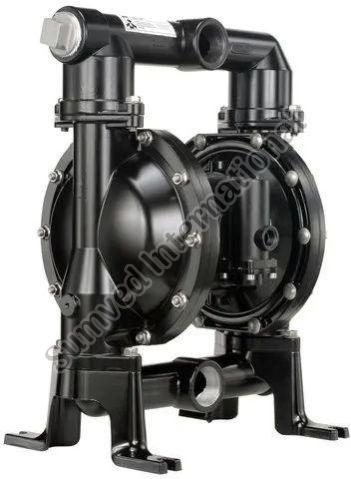

| Model Name/Number | 2 Inch EXPERT SERIES METALLIC |
| Pump Type | Diaphragm Pump |
| Click to view more | |
Product Details
Material
ALUMINIUM/SS
Max Flow Rate
651 lpm
Head
4.2 mtr
Ratio
1:1
Maximum GPM (LPM)
172 (651)
Displacement per cycle
1.4 (5.3) @ 100 psi Gallons (Liters)
Air Inlet (Female)
3/4 - 14 N.P.T.F.-1
Max. operating pressure psi (bar)
120 (8.3)
Suspended solids max. dia. in. (mm)
1/4 Inch (6.4)
Maximum dry suction lift ft (m)
14 (4.2)
Sound Level
70 PSI 50 Cycles/Min 85.0 db(A)
Production Capacity
40-50 Units
Delivery Time
Ex-Stock or 3-4 Weeks
Packaging Details
Corrugated Box
Pump Casing Materials :
- Aluminum
- Cast Iron
- Stainless Steel
- Hastelloy-C
Diaphragm Material :
- Long Life PTFE
- Polypropylene
- Hytrel
- Nitrile
- Medical Grade Santoprene
- PTFE(PTFE)/Santoprene backer
- Viton
Fluid Inlet/Outlet (Female):
- PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
- PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
- PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Looking for "2 Inch Expert Series Metallic Air Operated Diaphragm Pump" ?
