Metallic Air Operated Diaphragm Pump

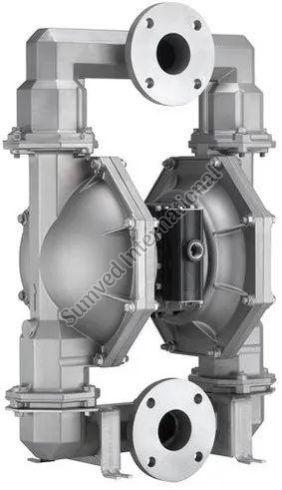

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of 1 1/2 Inch Expert Series Metallic Air Operated Diaphragm Pump, 1 Inch Expert Series Metallic Air Operated Diaphragm Pump, 2 Inch Expert Series Metallic Air Operated Diaphragm Pump and 3 Inch Expert Series Metallic Air Operated Diaphragm Pump from Navi Mumbai.

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/Number 1.5 Inch METALLIC EXPERT SERIES
Pump Type Diaphragm Pump
Brand INGERSOLL-RAND ARO
Material ALUMINIUM/SS
Max Flow Rate 465 lpm
Head 4.2 mtr
Output 123 gpm
Max Pressure 8.3 bar
Ratio 1:1
Maximum GPM (LPM) 123 (465)
Displacement per cycle Gallons (Liters) 0.617 (2.34)
Air Inlet (Female) 1/2 - 14 N.P.T.
Max. operating pressure psi (bar) 120 (8.3)
Suspended solids max. dia. in.(mm) 1/4 Inch (6.4)

Click to view more

Preferred Buyer From

Location Worldwide

Benefits

  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - Our patented Unbalanced air valve ensures no-stall operation
  • Versatility - Broad range in materials of construction for optimum fluid compatibility
  • Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking


Serviceability - Easier service through modular design
Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton


Weight lbs (kg):

  • PX15R-XAX-XXX 37.7 (17.1)
  • PX15R-XCX-XXX 73.2 (33.2)
  • PX15R-XSX-XXX 61.2 (27.8)
  • PX15R-XHX-XXX 86.9 (39.4)


Note:

  • Aadd 2.14 lbs (0.97 kg) for aluminum air motor section
  • Add 18.14 lbs (8.23 kg) for stainless steel air motor section.
  • Maximum dry suction lift ft(m): 14 (4.2)
  • Sound Level: 70 PSI     50 Cycles/Min    81.0 db(A)
Read More...


Yes! I am interested

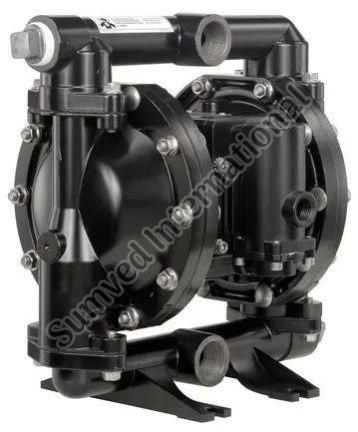

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/number 1
Pump Type Diaphragm Type
Brand INGERSOLL-RAND ARO
Material Aluminium/stainless Steel
Max Flow Rate 197 lpm
Head 5.7 Mtr
Maximum GPM (LPM) 52 (197)
Displacement per cycle Gallons (Liters) 0.232 (0.88)
Air Inlet (Female) 1/4 - 18 N.P.T.
Fluid Inlet/Outlet 1 - 11-1/2 N.P.T.F.-1, Rp1(1-11 BSP)
Suspended solids max. dia. in. (mm) 1/8 Inch (3.3)
Max. operating pressure psi (bar) 120 (8.3)

Click to view more

Preferred Buyer From

Location Worldwide

Benefits

  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - Our patented Unbalanced air valve ensures no-stall operation
  • Versatility - Broad range in materials of construction for optimum fluid compatibility
  • Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking


Serviceability - Easier service through modular design
Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton
  • Ratio: 1:1



Weight lbs (kg):

  • PX10R-XAX-XXX 20.7 (9.4)
  • PX10R-XCX-XXX 35.2 (16.0)
  • PX10R-XHX-XXX 39.6 (18.0)
  • PX10R-XSX-XXX 38.2 (17.3)


Note:

  • Add 4.65 lbs (2.11 kg) for aluminum air motor
  • Add 11.09 lbs (5.03 kg) for stainless steel air motor
  • Maximum dry suction lift ft(m): 19 (5.7)
  • Sound Level: 70 PSI 60 Cycles/Min 80.6 db(A)
Read More...


Yes! I am interested

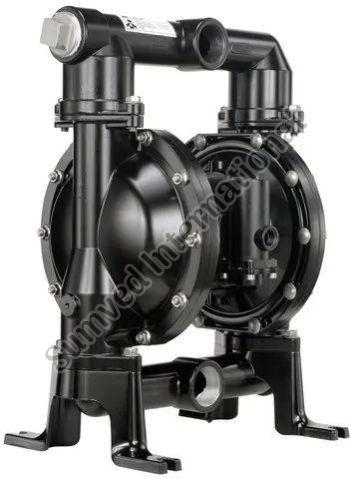

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/Number 2 Inch EXPERT SERIES METALLIC
Pump Type Diaphragm Pump
Brand INGERSOLL-RAND ARO
Material ALUMINIUM/SS
Max Flow Rate 651 lpm
Head 4.2 mtr
Ratio 1:1
Maximum GPM (LPM) 172 (651)
Displacement per cycle 1.4 (5.3) @ 100 psi Gallons (Liters)
Air Inlet (Female) 3/4 - 14 N.P.T.F.-1
Max. operating pressure psi (bar) 120 (8.3)
Suspended solids max. dia. in. (mm) 1/4 Inch (6.4)
Maximum dry suction lift ft (m) 14 (4.2)
Sound Level 70 PSI 50 Cycles/Min 85.0 db(A)
Production Capacity 40-50 Units
Delivery Time Ex-Stock or 3-4 Weeks
Packaging Details Corrugated Box

Click to view more

Preferred Buyer From

Location Worldwide

Pump Casing Materials :

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Material :

  • Long Life PTFE
  • Polypropylene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE(PTFE)/Santoprene backer
  • Viton


Fluid Inlet/Outlet (Female):

  • PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
  • PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
  • PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Read More...


Yes! I am interested


MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/Number 3
Pump Type Diaphragm Type
Brand INGERSOLL-RAND ARO
Material ALUMINIUM/SS
Max Flow Rate 1041 lpm
Head 4.2 mtr
Phase Air operated
Color Black
Ratio 1:1
Maximum GPM (LPM) 275 (1041)
Displacement per cycle 2.8 (10.6) @ 100 psi Gallons (Liters)
Air Inlet (Female) 3/4 - 14 N.P.T.F. - 1
Fluid Inlet / Outlet (Female) 3 - 8 N.P.T.F. - 1
Max. operating pressure psi (bar) 120 (8.3)
Suspended solids max. dia. in. (mm) 3/8 (9.5)

Click to view more

Preferred Buyer From

Location Worldwide

Pump Casing Materials :

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Material :

  • Long Life PTFE
  • Polypropylene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE(PTFE)/Santoprene backer
  • Viton


Weight lbs (kg):

  • PX30A-XAX-XXX-C 129.5 (58.8)
  • PX30A-XCX-XXX-C 221.1 (100.3)
  • PX30A-AHX-XXX-C 249.4 (113.3)
  • PX30A-ASX-XXX-C 228.3 (103.8)
  • PX30A-FHX-XXX-C 269.4 (122.3)
  • PX30A-FSX-XXX-C 245.2 (114.4)
Read More...
