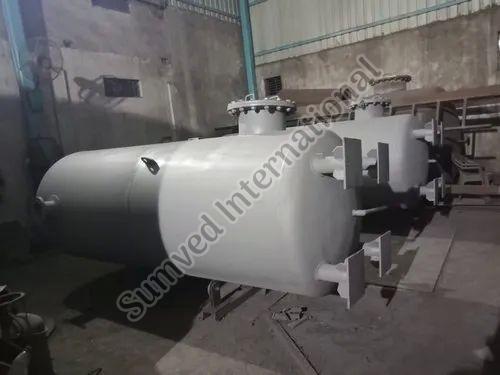

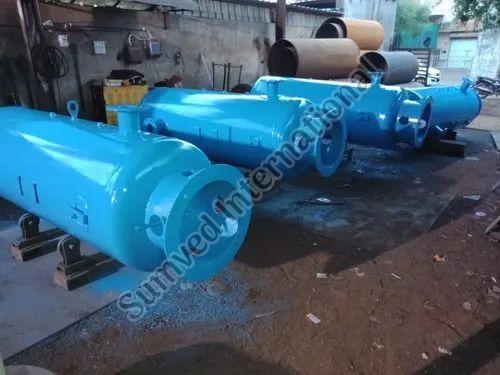

Air Receiver Storage Tank

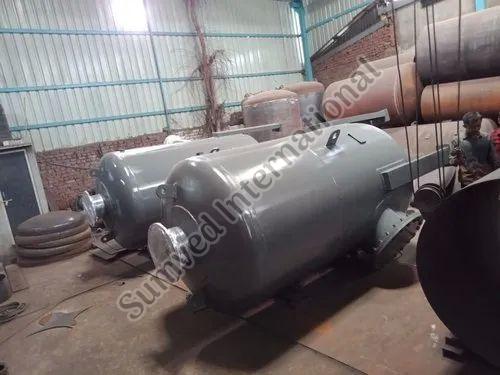

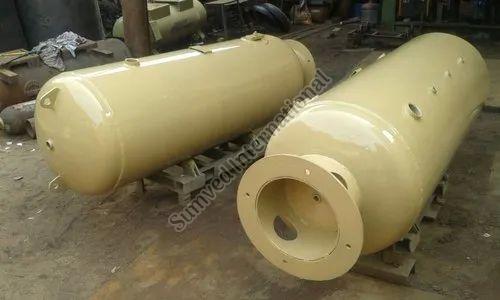

Air Receivers manufactured under ASME Section VIII Division 1 and using IS 2062 grade mild steel are designed and fabricated to meet stringent international safety, quality, and performance standards for pressure vessel applications. These receivers are engineered to safely store compressed air, maintain stable system pressure, and enhance the operational efficiency of compressed air systems across industrial environments.

The design process begins with detailed engineering calculations in accordance with ASME Section VIII Div.1 guidelines, covering design pressure, operating temperature, corrosion allowance, joint efficiency, and safety factors. Computer-aided design tools are used to prepare general arrangement drawings, fabrication details, nozzle orientations, and reinforcement calculations to ensure structural integrity under working conditions. Material selection using IS 2062 ensures high strength, weldability, and durability suitable for pressure vessel construction.

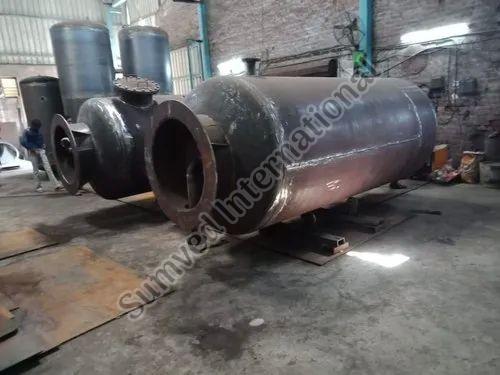

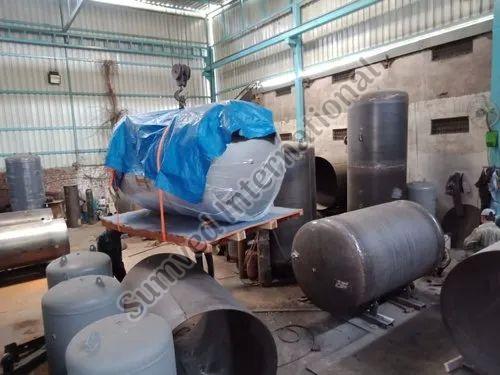

Manufacturing starts with procurement of certified IS 2062 plates supported by mill test certificates and material traceability documentation. Plate cutting is performed using CNC plasma or laser cutting to achieve dimensional accuracy. The shell plates are then rolled into cylindrical shapes using heavy-duty plate rolling machines, followed by edge preparation for welding. Dished ends or torispherical ends are formed through hydraulic pressing or spinning processes, ensuring uniform thickness and compliance with design specifications.

Welding procedures are qualified as per ASME requirements, and fabrication is carried out by certified welders using approved WPS and PQR documents. Longitudinal and circumferential seams are welded using processes such as SAW, MIG, or TIG depending on thickness and design requirements. Nozzles, manholes, lifting lugs, and support legs or skirts are precisely fitted and welded as per approved fabrication drawings. Strict dimensional inspections are conducted throughout the manufacturing process.

Non-destructive testing such as radiographic testing, ultrasonic testing, dye penetrant testing, and magnetic particle inspection is performed to verify weld integrity and structural soundness. After fabrication, the air receiver undergoes hydrostatic testing at specified test pressure to ensure leak-proof construction and compliance with safety standards. All testing and inspection activities are documented as part of the quality assurance process.

Surface preparation is carried out through shot blasting or sand blasting to achieve the required surface cleanliness. Internal and external surfaces are coated with corrosion-resistant primer and industrial-grade paint systems to enhance durability and resistance to environmental exposure. Final assembly includes installation of safety valves, pressure gauges, drain valves, inspection openings, and nameplate marking with complete technical details as per ASME norms.

Each manufactured air receiver is supplied with comprehensive documentation including design calculations, material test certificates, welding records, NDT reports, hydro test certificates, and inspection reports. The result is a reliable, safe, and durable air receiver built to international standards, capable of delivering consistent performance, long service life, and dependable operation in demanding industrial compressed air systems.

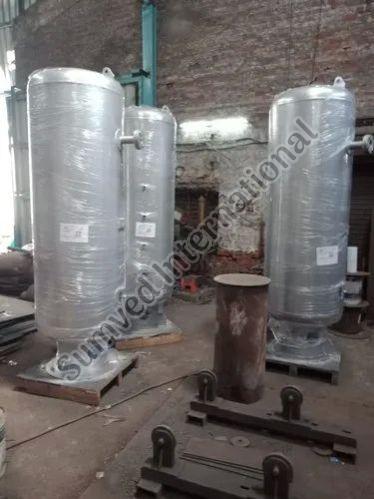

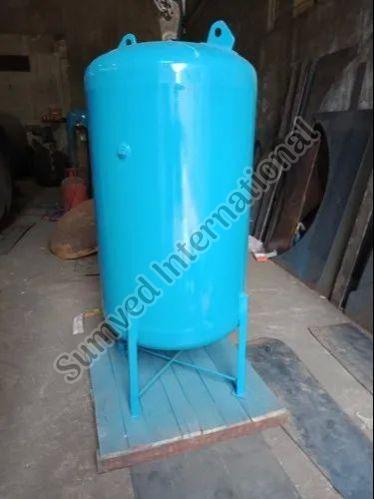

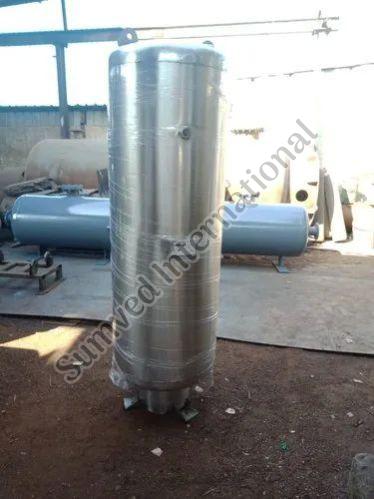

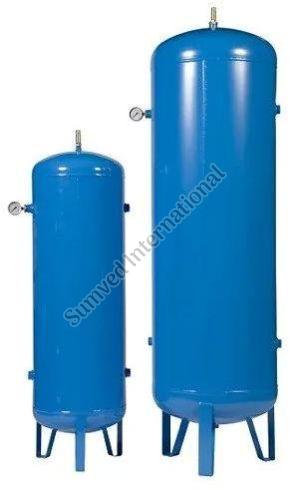

MS Vertical Air Storage Receivers are high-quality pressure vessels engineered for the efficient storage and smooth distribution of compressed air in industrial and commercial compressed air systems. Designed in a vertical configuration, they help save valuable floor space while ensuring optimal air management and improved system stability. These receivers act as an air buffer, minimizing pressure fluctuations, reducing compressor cycling, and maintaining a consistent air supply for downstream equipment and production processes.

Manufactured from premium grade mild steel, the receivers are built to withstand demanding operating conditions and continuous usage. Their robust construction ensures high strength, durability, and long operational life even in harsh industrial environments. The vertical design also promotes effective separation of moisture and condensate from compressed air, thereby enhancing overall air quality and reducing the risk of damage to pneumatic tools and machinery. Internal and external surfaces are typically treated with anti-corrosive coatings or protective finishes to enhance resistance against rust, environmental exposure, and wear.

MS Vertical Air Storage Receivers are widely used in manufacturing plants, engineering workshops, automotive industries, process industries, packaging units, fabrication facilities, and various other industrial applications where stable compressed air supply is essential. They help improve compressor efficiency by reducing load cycles, lowering energy consumption, and supporting peak air demand during sudden pressure drops. With proper integration into the compressed air system, these receivers contribute to improved productivity, reduced downtime, and optimized operational performance.

The receivers are available in various capacities, pressure ratings, and customized configurations to meet diverse industry requirements. They are designed with standard safety features such as pressure relief valves, drain valves, inspection openings, and mounting supports for secure installation and easy maintenance. Regular inspection and simple maintenance procedures ensure reliable operation and extended service life.

Overall, MS Vertical Air Storage Receivers provide a dependable, cost-effective, and space-efficient solution for compressed air storage. Their sturdy construction, efficient moisture separation capability, and contribution to stable air pressure make them an essential component in any modern compressed air system focused on performance, safety, and long-term reliability.
