Timer Drain Valves

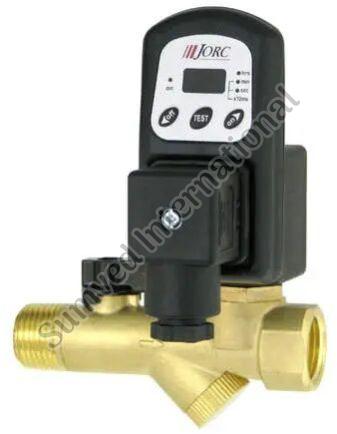

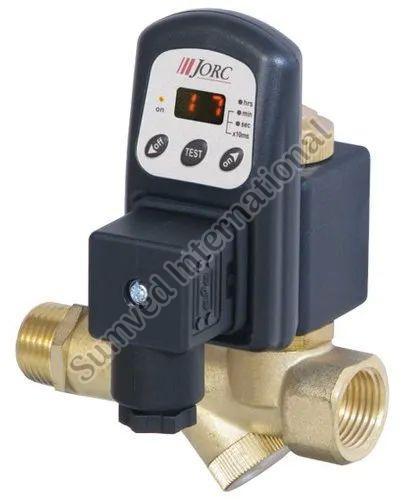

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of JORC COMBO-D-LUX Digital Timer Drain With Integrated Strainer, JORC FLUIDRAIN Electronic Timer Drain and JORC MAKE EZ-1 Electronic Timer Drain from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Media | Air |
| Valve Size | 1/4 Inch & 1/2 Inch / 1/2 Inch BSP Or NPT |
| Application | Air |
| Brand Name | JORC |
| Packaging Type | Corrugated Box |
| Material | Brass |
| Technical Name | Digital Timer Auto Drain Valve |
| Warranty | 1 Year |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | JORC |
| Material | Brass |
| Condition | New |
| Application | AIR COMPRESSOR, DRYERS, RECEIVERS,Condensate Drain |
| Size | 1/4" & 1/2" / 1/2" BSP or NPT |
| Voltage | 24 - 230 VAC/DC 50/60 Hz. |
| Model Name/Number | JORC FLIUDRAIN |
| Mounting Type | 1/8", 1/4", 3/8" or 1/2" BSP or NPT |
| Timer Type | Digital |
| Automatic Grade | Automatic |
| Packaging Details | BOX |

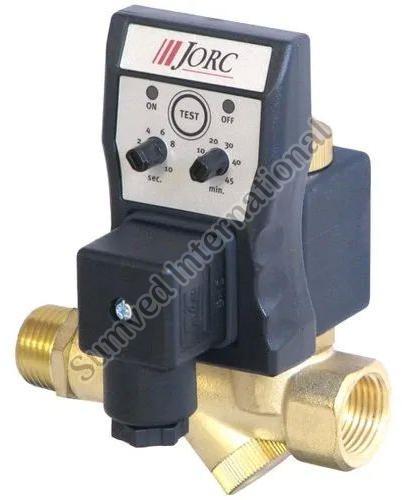

The FLUIDRAIN-COMBO timer
controlled condensate drain is a
combination of a solenoid valve and
an electronic timer designed to
automatically remove condensate from
compressors, compressed air dryers
and receivers - up to 16 bar
applications.
COMMERCIAL BENEFITS:
• Installation time saver thanks to the integrated shut off valve and mesh strainer
• Dual thread inlet (1/2" & 1/4"), offering installation flexibility
• Any type of compressed air system and up to 16 bar
• Serviceable valve construction, offering you routine maintenance revenues
• Consult JORC for private labelling options
TECHNICAL ADVANTAGES:
• Integrated mesh strainer, offering valve and orifice protection from larger particles found
in condensate
• Integrated shut off valve, offering easy shut off of the valve for routine maintenance
• Does not air-lock during operation
• TEST (micro-switch) feature
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | JORC |
| Material | Brass |
| Condition | New |
| Certification | ISO 9001:2000 CERTIFIED |
| Usage | Condensate Drain |
| Voltage Range | 24 - 230 VAC/DC 50/60 Hz. |
| Model Name/Number | JORC EZ-1 |
| Rated Current | 24 - 230 VAC/DC 50/60 Hz. |
| Mounting Type | 1/4 Inch , 3/8 Inch , 1/2 Inch BSP or NPT |
| Timer Type | Digital |
| Automatic Grade | Automatic |

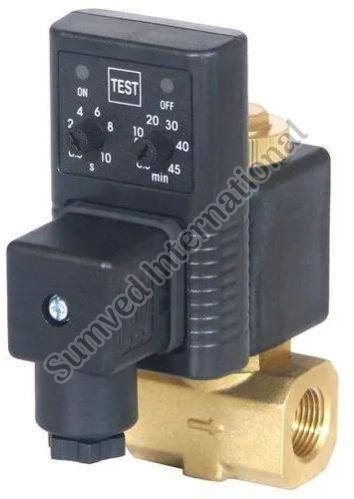

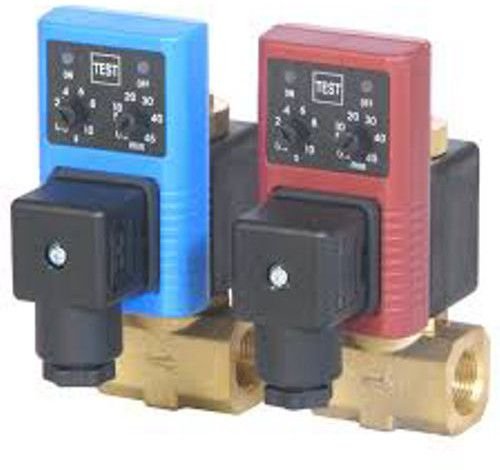

The EZ-1® removes condensate from compressed air systems using a solenoid valve in
combination with an electronic timer.
The EZ-1 condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove.
*COMMERCIAL BENEFITS:
• Does not air-lock during operation.
• Any type of compressed air systems up to 16 bar.
• Competitive procing levels available.
• TEST (micro-switch) feature.
• Private labelling and colour options are possible.
