LDV Series Trident Automatic Drain Valve
Leading Exporters, Wholesaler, Retailer, Trader and Distributor of LDV-1000 Trident Automatic Drain Valve, LDV-2000 Trident Automatic Drain Valve and LDV-3000 Trident Automatic Drain Valve from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Download |  View |
| Media | Air |
| Model | LDV-1000 |
| Size | L141X B60X H127 mm |
| Available Voltage | 85 TO 300VAC 50-60 Hz |
| Brand Name | TRIDENT |
| Fluid Temperature | 75 Deg C |
| Power Source | 230 Volts 50-60hz |
Features:
1) The electronic level control ensures proper draining of condensate and avoids unnecessary of air loss.
2) All the function of the valve are accurately indicated by the yellow LED.
3) Test switch (or) manual drain allows function test at any time.
4) Intelligent Controller detects probe failure and indicates Red LED for potential free relay NO change to NC.
5) Noise less as air is not discharged.
6) Inbuilt fault tolerant system ensures continuous operation of drain valves.
7) In-case of level probe failure drain valve gets ON 0.5 seconds of every 6 minutes.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Media | Air |

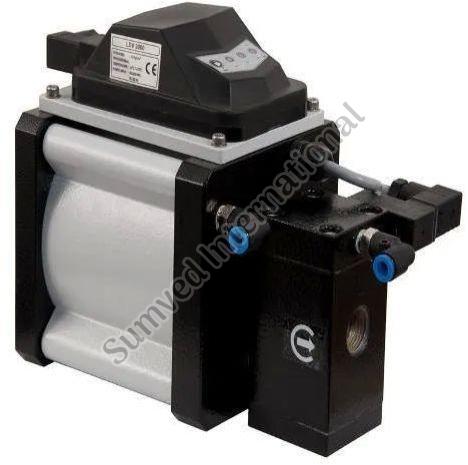

| Model | LDV-2000 |
| Size | L225XB127XH164 |
| Available Voltage | 230 Volts |
| Brand | TRIDENT |
| End Connection | 1/2 BSP-M |
| Fluid Temperature | 75 Deg.C |
| Power Source | 85 TO 300V AC 50/60 Hz |
Features:
1) The electronic level control ensures proper draining of condensate and avoids unnecessary of air loss.
2) All the function of the valve are accurately indicated by the yellow LED.
3) Test switch (or) manual drain allows function test at any time.
4) Intelligent Controller detects probe failure and indicates Red LED for potential free relay NO change to NC.
5) Noise less as air is not discharged.
6) Inbuilt fault tolerant system ensures continuous operation of drain valves.
7) In-case of level probe failure drain valve gets ON 0.5 seconds of every 6 minutes.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| End Connection | 1/2 Inch BSP |
| Media | Air |
| Drain Time | 2 Min for a Period of 2 Seconds. |
| Size | L385XB183XH229 MM |
| Available Voltage | 230 Volts |
| Brand Name | TRIDENT |
| Fluid Temperature | 75 Deg. C |
| Power Source | 85 TO 300VAC 50/60 Hz |
