Trident Automatic Drain Valve

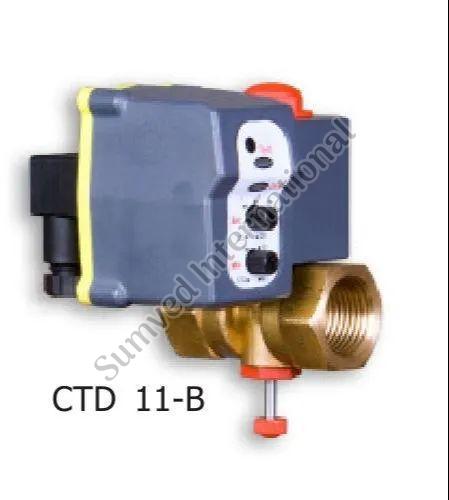

Leading Exporters, Wholesaler, Retailer, Trader and Distributor of CTD-11-B Trident Automatic Drain Valve, EDV Series Trident Automatic Drain Valve and LDV Series Trident Automatic Drain Valve from Navi Mumbai.
| Business Type | Supplier, Trader, Distributor |
| Download |  View |
| Brand Name | Trident |
| Media | Air |
| Drain Time | 1-20 second |
| Material | Aluminium |
| Valve Size | 1/2 Inch |
| Pressure | 16 Bar |
| Coil Voltage | 230 Volts |
| Weight | 250-450 Grams |
| Frequency | 50 - 60 Hz |
| Working Pressure | 16 Bar |
| Voltage | 230 V AC |
| Efficiency | 80% |
| Temperature | 0-700 degree C |
| Power | 8-15 Watts |
Features:
- Easy to mount at all locations
- Condensate discharging is no more a problem
- On / Off timing adjustable
- Large orifice for effective drain of dust and condensate
- Maintains and cleans drain valve without removing from service
- Design Patented
| Business Type | Supplier, Trader, Distributor |
| Media | Air |
| Working Pressure | 16 Kg/cm2 |
| Frequency | 50 Hz |
| Weight | 0.9 Kg |
| Valve Size | 1inch, 12.5mm |
| Material | Aluminium |
| Brand Name | Trident |
| Drain Time | Automatic Timer Based |
| Pressure | 16 Kg/cm2 |
| Voltage Range | Ac-230 Volts,230 Volts |
| Dimension | L101XB90XH190 mm |
| Input Voltage | 230 Volts |
| Temperature | 75 Degree C |
| Power | 2 Watts |
| Product Code | EDV-X-HD-1-1 |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Download | View |
| Media | Air |
| Model | LDV-1000 |
| Size | L141X B60X H127 mm |
| Available Voltage | 85 TO 300VAC 50-60 Hz |
| Brand Name | TRIDENT |
| Fluid Temperature | 75 Deg C |
| Power Source | 230 Volts 50-60hz |
Features:
1) The electronic level control ensures proper draining of condensate and avoids unnecessary of air loss.
2) All the function of the valve are accurately indicated by the yellow LED.
3) Test switch (or) manual drain allows function test at any time.
4) Intelligent Controller detects probe failure and indicates Red LED for potential free relay NO change to NC.
5) Noise less as air is not discharged.
6) Inbuilt fault tolerant system ensures continuous operation of drain valves.
7) In-case of level probe failure drain valve gets ON 0.5 seconds of every 6 minutes.
