12,000.00 - 22,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | CompAir |
| Country of Origin | India |
| Material | Brass |
| Click to view more | |
Product Details
Color
Sky Blue
Condition
New
Max. Compressor Capacity
Any Size
Min./max. System Pressure
Standard: 0 - 16 bar, HP: 0 - 80 bar
Min./max. Medium Temperature
1 - 55°C (34 - 131°F)
Min./max. Ambient Temperature
1 - 55°C (34 - 131°F)
Supply Voltage Options
115VAC / 230VAC
Environmental Protection
IP65 (NEMA4)
Connector Type (power)
DIN 43650-A
Inlet connections
CTDV: 1/4 Inch, 3/8 Inch, 1/2 Inch BSP, CTDC: 1/4 Inch, 1/2 Inch BSP
Outlet Connections
CTDV: 1/4 Inch, 3/8 Inch, 1/2 Inch BSP, CTDC: 1/2 Inch BSP
Inlet Connection Height
Approx. 1cm
Valve Type
2/2 Way, Direct Acting
Valve Orifice
CTDV: 4.5 mm, CTDC: 4.0 mm
Valve Seals
FPM
Serviceable Valve
Yes
Valve Housing Material
Brass (stainless Steel Available)
Test Feature
Yes
Timer Cycle Range (on/off)
0.5 – 10 Seconds / 0.5 – 45 Minutes
Timer PCB
SMD technology, ensuring consistency in production
Timer Cycle Indication
Bright LED illumination

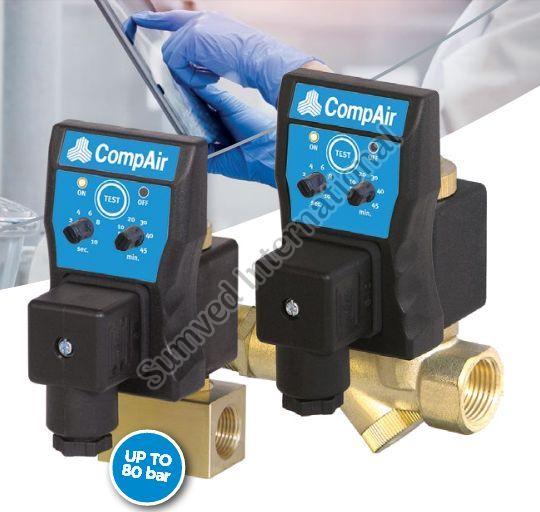

Electronic timer controlled condensate drain:
The CTDV timer controlled condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems. The CTDC in addition, has an integral ball valve and a strainer, all in the same body.
Features & Benefits:
• Any type of compressed air system
and compressor capacity
• Available in High Pressure up to 80 bar
• Environmentally friendly low Watt version available
• Serviceable valve construction
• Large (4.5mm) valve orifice
• Does not air-lock during operation
• Quick to service
• Test feature (micro-switch)
• Accurate time cycles
• High quality PCB components, offering
you consistent quality
