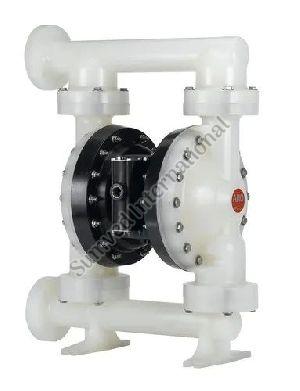

2 Inch Expert Series Non-Metallic Air Operated Diaphragm Pump

2 Inch Expert Series Non-Metallic Air Operated Diaphragm Pump
Price : 2.25 Lac / Piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/Number 2" EXPERT SERIES
Pump Type Diaphragm Pump
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand
INGERSOLL-RAND ARO
Material
PVDF/POLYPROPLYNE
Max Flow Rate
696 lpm
Head
4.2 mtr

Benefits

  • Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
  • Reliability - Our patented Unbalanced air valve ensures no-stall operation
  • Versatility - Broad range in materials of construction for optimum fluid compatibility
  • Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking


Serviceability - Easier service through modular design

  • Pump Casing Materials
  • Polypropylene
  • Conductive Polypropylene
  • PVDF (Kynar)
  • Conductive PVDF


Diaphragm Materials

  • Long Life PTFE (not available with C-PVDF)
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton


Weight lbs (kg):

  • Polypropylene, Threaded Port 19.35 (8.78)
  • Polypropylene, Center Ported 19.59 (8.89)
  • Polypropylene, Side Ported 19.87 (9.01)
  • PVDF, Threaded Port 25.83 (11.72)
  • PVDF, Center Ported 26.72 (12.12)
  • PVDF, Side Ported 27.15 (12.32)
  • Maximum dry suction lift ft(m): 19 (5.7)
  • Sound Level: 70 PSI60 Cycles/Min79.7 db(A)
