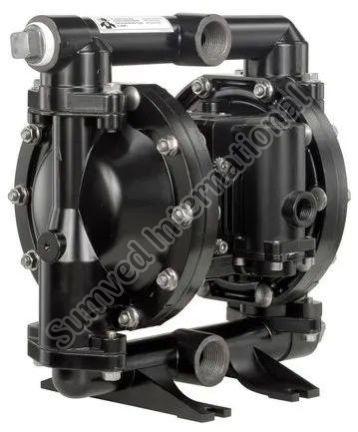

1 Inch Expert Series Metallic Air Operated Diaphragm Pump

1 Inch Expert Series Metallic Air Operated Diaphragm Pump
Price : 1.43 Lac / Piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/number 1
Pump Type Diaphragm Type
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand
INGERSOLL-RAND ARO
Material
Aluminium/stainless Steel
Max Flow Rate
197 lpm
Head
5.7 Mtr
Maximum GPM (LPM)
52 (197)
Displacement per cycle Gallons (Liters)
0.232 (0.88)
Air Inlet (Female)
1/4 - 18 N.P.T.
Fluid Inlet/Outlet
1 - 11-1/2 N.P.T.F.-1, Rp1(1-11 BSP)
Suspended solids max. dia. in. (mm)
1/8 Inch (3.3)
Max. operating pressure psi (bar)
120 (8.3)

Benefits

  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - Our patented Unbalanced air valve ensures no-stall operation
  • Versatility - Broad range in materials of construction for optimum fluid compatibility
  • Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking


Serviceability - Easier service through modular design
Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton
  • Ratio: 1:1



Weight lbs (kg):

  • PX10R-XAX-XXX 20.7 (9.4)
  • PX10R-XCX-XXX 35.2 (16.0)
  • PX10R-XHX-XXX 39.6 (18.0)
  • PX10R-XSX-XXX 38.2 (17.3)


Note:

  • Add 4.65 lbs (2.11 kg) for aluminum air motor
  • Add 11.09 lbs (5.03 kg) for stainless steel air motor
  • Maximum dry suction lift ft(m): 19 (5.7)
  • Sound Level: 70 PSI 60 Cycles/Min 80.6 db(A)
