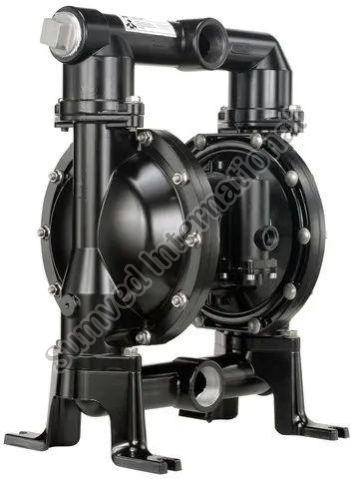

1 1/2 Inch Expert Series Metallic Air Operated Diaphragm Pump

2.01 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Power Source Air Powered
Model Name/Number 1.5 Inch METALLIC EXPERT SERIES
Pump Type Diaphragm Pump
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand
INGERSOLL-RAND ARO
Material
ALUMINIUM/SS
Max Flow Rate
465 lpm
Head
4.2 mtr
Output
123 gpm
Max Pressure
8.3 bar
Ratio
1:1
Maximum GPM (LPM)
123 (465)
Displacement per cycle Gallons (Liters)
0.617 (2.34)
Air Inlet (Female)
1/2 - 14 N.P.T.
Max. operating pressure psi (bar)
120 (8.3)
Suspended solids max. dia. in.(mm)
1/4 Inch (6.4)

Benefits

  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - Our patented Unbalanced air valve ensures no-stall operation
  • Versatility - Broad range in materials of construction for optimum fluid compatibility
  • Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking


Serviceability - Easier service through modular design
Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C


Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton


Weight lbs (kg):

  • PX15R-XAX-XXX 37.7 (17.1)
  • PX15R-XCX-XXX 73.2 (33.2)
  • PX15R-XSX-XXX 61.2 (27.8)
  • PX15R-XHX-XXX 86.9 (39.4)


Note:

  • Aadd 2.14 lbs (0.97 kg) for aluminum air motor section
  • Add 18.14 lbs (8.23 kg) for stainless steel air motor section.
  • Maximum dry suction lift ft(m): 14 (4.2)
  • Sound Level: 70 PSI     50 Cycles/Min    81.0 db(A)
