Industrial Filters

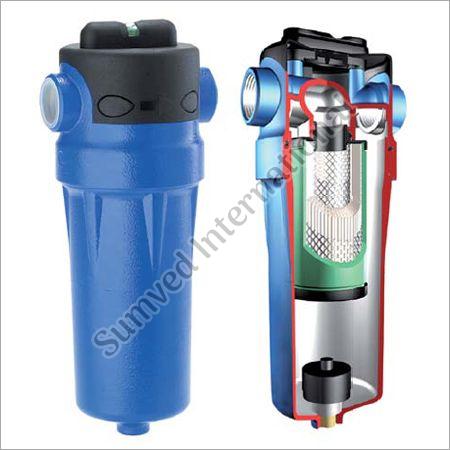

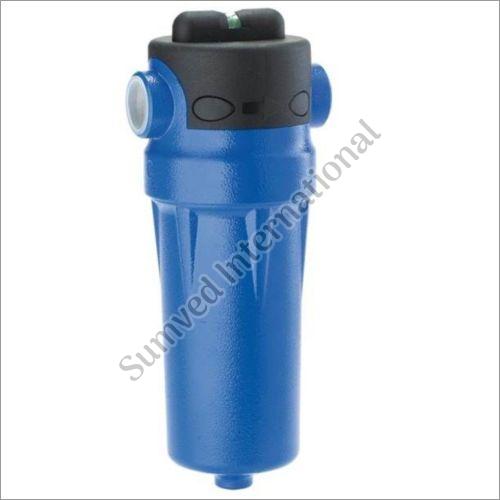

Refrigerated Air Dryer With Air Filter
Integrating Evolution refrigerated air dryer with air filter provides you clean air by removing suspended particles down to 0.01 * micron including coalesced liquid water and oil.

Grade G (Prefilter)

• General Purpose Protection


• Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.5 mg / m3.

Grade H (Afterfilter)
High Efficiency Oil Removal Filtration Particle removal down to 0.01 micron including water & oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg / m3.

Salient Features:

• Automatic drain valve


• Particles up to 0.01 microns are filtered.


• Very low pressure drop, 1 PSI for dry media and 2-3 PSI for wet media


• Status indicator


• Different coalescer grade for various applications


• Maximum oil carries over of 0.008 PPM w/w

Application:

• Painting


• CNC


• Garments


• Textiles


• Instrumentation


• Automobiles


• Pharma


• Food industry


• Packaging
