Air Compressor

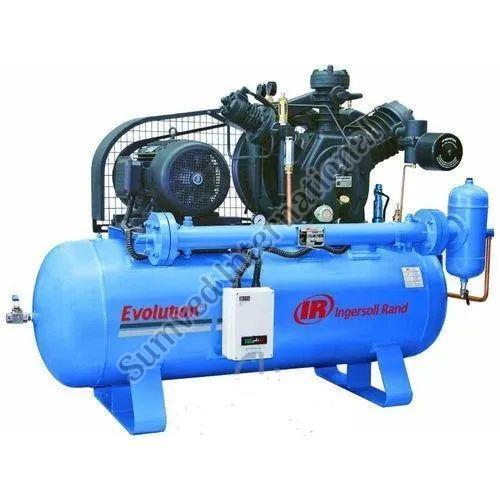

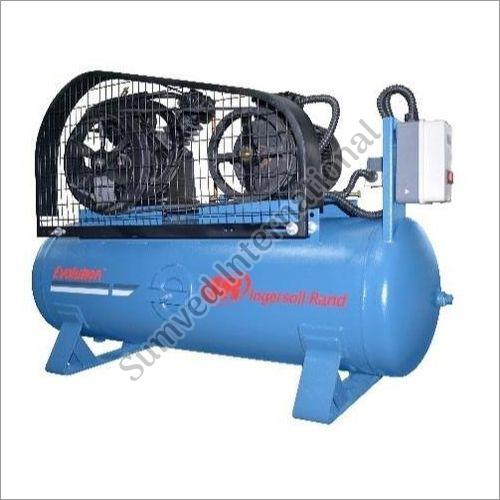

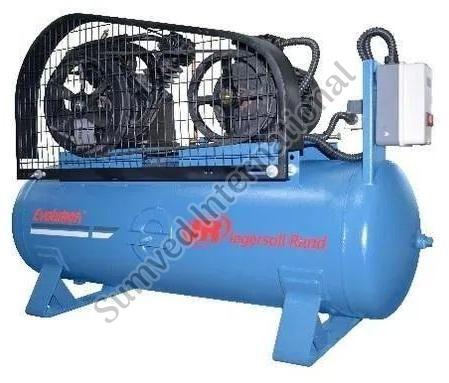

FEATURES:

• Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use

• Maximum Power and Flexibility: 100% continuous duty, up to 5 hp two-stage air compressor, 175 psig maximum operating pressure and a 60 or 80 gallon ASME receiver tank provide plenty of punch for the most demanding applications

• Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service

Application:

• Pharmaceutical Industries


• Petroleum Industries


• Laboratories


• Building Material


• Electrical and Electronic


• Textile Industries


• Food Processing


• Hospitals


• Chemical


• Spray Painting

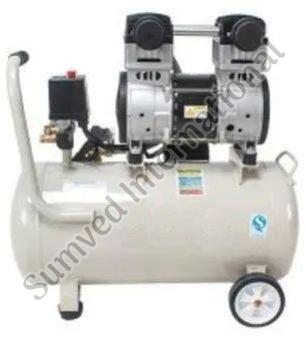

• Discharge is free from oil contaminant

Features:

• Robust construction
• Longer service life
• Unmatched performance

Product:

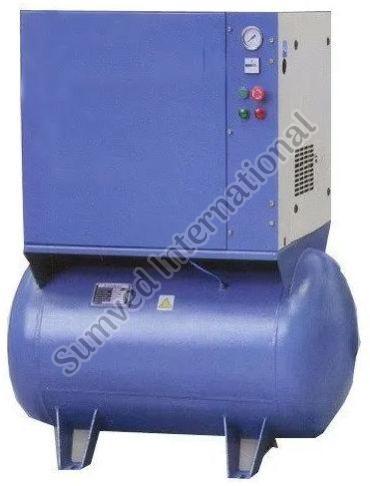

Ingersoll-Rand Evolution Series Screw Air Compressor
Motor Power: 4 kW – 11 kW range (specify exact model)

1. Air End / Compressor Element

   • Twin-screw rotors

   • Bearings & seals

2. Drive Belts

   • V-belt kit for Evolution 4 – 11 kW

3. Air/Oil Separator Element

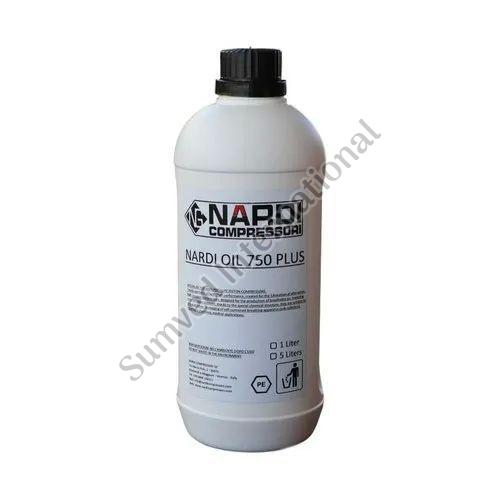

4. Oil Filter & Oil

   • Screw compressor specific lubricant

5. Intake Filter / Air Filter Cartridge

6. Oil Cooler / Intercooler

   • If fitted

7. Pressure Switch / Transducer

8. Aftercooler Filter / Condensate Separator

9. Control Panel / PCB / Display Module

   • Evolution controller spare

10. Valves

    • Inlet unloader valve

    • Check valves

11. Safety Valve

12. Relief Valve / Regulator

13. Gaskets & O-Rings Kit

FEATURES:

• Three Stage Separation (Air/Oil)

  Three stage air/oil separation system ensures minimum oil carry over at discharge point. Integrating with moisture separator safeguards moisture free air.

• Compartment for effective cooling

  Specifically designed extended compartment for effective cooling. It helps to keep compressor room temperature at minimum level.

• Designed for Trouble free maintenance

  Evolution is designed for Indian tropical conditions at 46°C. All major components are designed and assembled to provide ease of access and serviceability.

Compressor Scope of Supply:
1) Intake Filter
2) Compressor Block
3) Flywheel Cover
4) Interstage Separator
5) Filter ATL
6) Pressure Maintaining Valve
7) Filling Hose Connections (Maximum 2)
8) Filling valve with Pressure Gauge
9)Automatic Condensate Drain (Optional)
10)Final Pressure Switch with Autostop (Optional)
11) Electric Motor
12) Hour Meter (Optional)
13) Frame in aluminium powder paint coated

OPTIONAL-ACESSORIES:

1. One additional filling hose (standard 1 filling hose, maximum 2 filling hoses)
2. Final pressure switch with autostop
3. Automatic Condensate Drain
4. Dual Pressure, 225 bar (max.1filling hose)+330 bar(max.1filling hose)
5. Trolley (wheels + handle) All tec

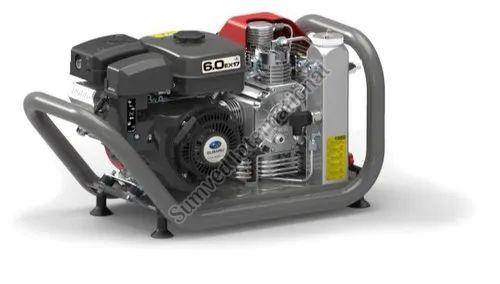

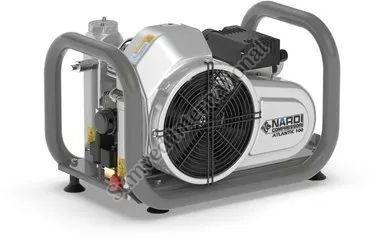

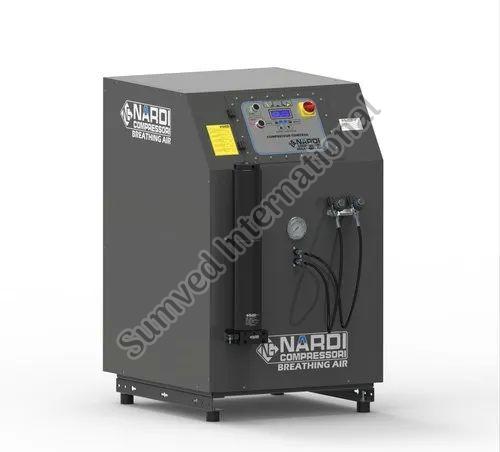

Features :

• Easy to install, designed for reducing the noise effectively and to make the job easy, safe, reliable and even enjoyable.
• The filter is easily accessible on the front of the compressor, for the replacement of the filter cartridges, immediately to the left of the control panel Nardi compressors. Four outputs as standard, the electronic control system and the condensate drain patented automatic round off the equipment that this compressor Nardi offers;
• reliable electric motors designed and built by Nardi Compressors specific for each model type; specific voltages on request; in accordance with the directives DIN EN 12021 and with the PED

Compressor Scope of Supply :

• Intake Filter
• Compressor Block
• Flywheel Cover
• Interstage Separator
• Filter ATL
• Pressure Maintaining Valve
• Filling Hose Connections (Maximum 2)
• Filling valve with Pressure Gauge
• Automatic Condensate Drain (Optional)
• Final Pressure Switch with Autostop (Optional)
• Electric Motor
• Hour Meter (Optional)
• Frame in aluminium powder paint coated

OPTIONAL-ACESSORIES :

• One additional filling hose (standard 1 filling hose, maximum 2 filling hoses)
• Final pressure switch with autostop
• Automatic Condensate Drain
• Dual Pressure, 225 bar (max.1filling hose)+330 bar(max.1filling hose)
• Trolley (wheels + handle) All tec
